Changing Keyboard Shortcuts

You can define key bindings for almost all operations and editor commands in DbVisualizer. Key bindings are defined in Tools > Tool Properties under the General / Key Bindings category. Key bindings are grouped in Key Maps, each with an action list organized in folders; the Editor Commands folder lists all actions available in the SQL Commander editor and their current key bindings (in the Key Bindings list), the Main Menu folder contains subfolders, each representing a main window menu and other folders group feature specific actions, such as actions to control the references graph, form editor, etc.

DbVisualizer includes a set of predefined keymaps targeted for the supported operating systems. These keymaps cannot be deleted or modified. To customize key bindings, copy an existing keymap and make your changes.

For instance, the Main Menu folder contains actions in subfolders, each representing a main window menu, and the Editor Commands folder lists all actions available in the SQL editor. For each action, the key binding(s) are defined in the Key Bindings column.

DbVisualizer key bindings list

All user-defined keymaps are stored in your $HOME/.dbvis/config140/keymaps directory. A keymap file contains only the differences between the copied keymap and the current. To create a new keymap, select the map you want to copy and click the Make Copy button. The name of the copied keymap is suffixed with _copy and is activated automatically. Set a name on the new keymap if you like. The newly created keymap now has the exact same key bindings as the parent keymap.

Process of creating new keymap in DbVisualizer

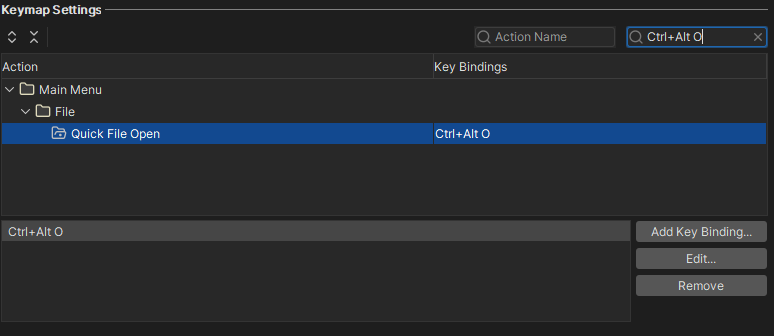

To modify the key bindings for an action, select the action from the action list. The current key bindings are listed in the Key Bindings list, and you can search for mappings by action or key binding.

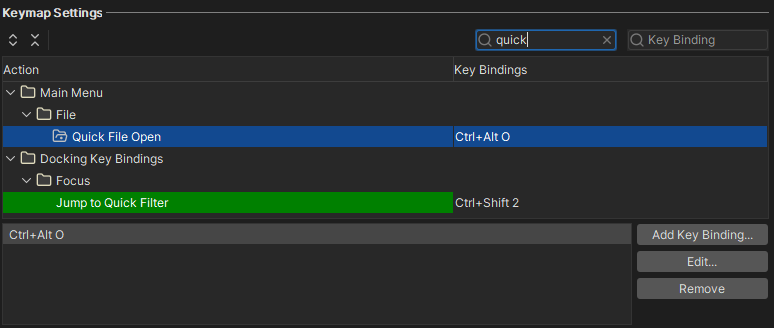

Modifying key bindings for an action in DbVisualizer

The modifier keys Shift, Alt, Ctrl and Command can be used to define the key binding. The keystroke dialog controls whether a key binding is already assigned somewhere else. If there is a conflict with another binding, the Conflicts area shows the names of the actions that are conflicting.

Defining the key binding using modifier keys in DbVisualizer

Conflict area showing conflicting actions for a key binding

Menu items and tooltips show the first defined key binding in the list.

Display of first defined key binding in menu items and tooltips
